• Data Rate:

  • 2.4GHz: Up to 300Mbps

  • 5GHz: Up to 867Mbps

• Antenna: 4 External Antennas

• Buttons: Reset, WPS/Wi-Fi On/Off, Power On/Off

• Frequency: 2.4GHz & 5GHz

• Wireless Standards:

  • IEEE 802.11n/g/b (2.4GHz)

  • IEEE 802.11ac/n/a (5GHz)

• Interfaces:

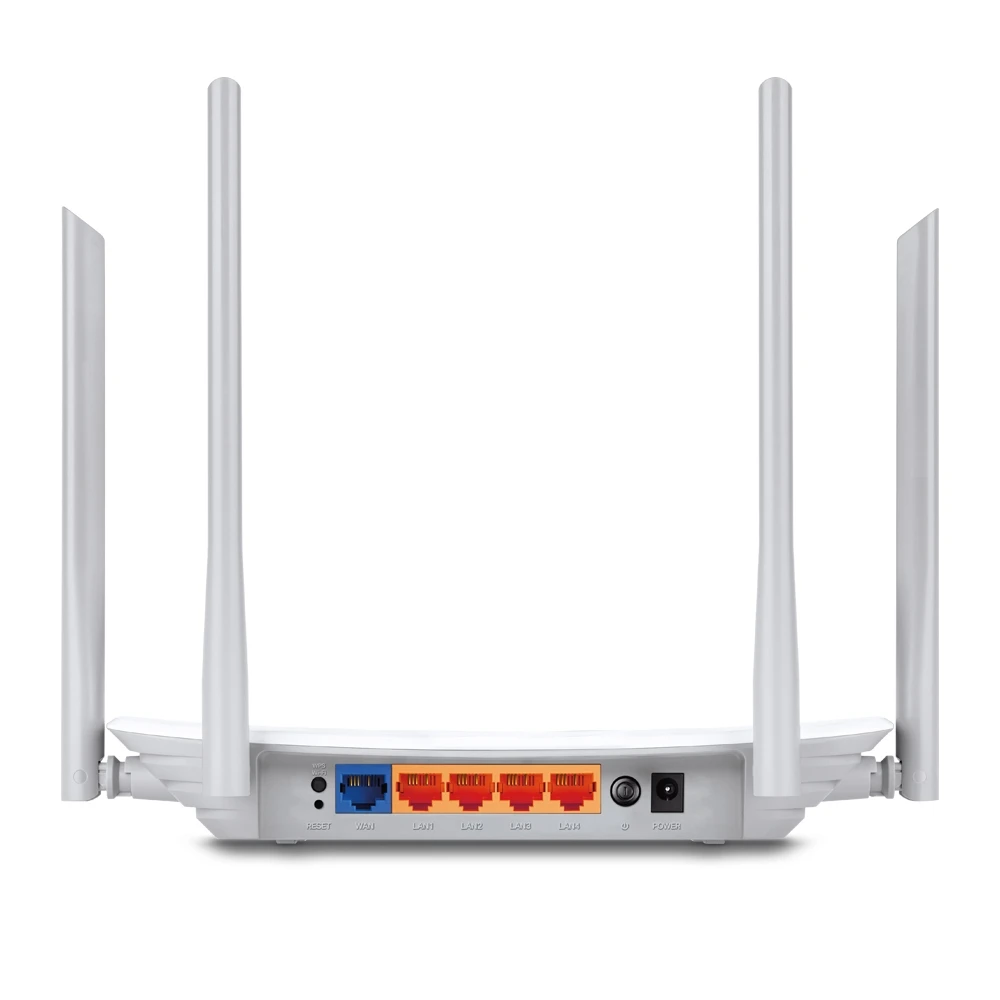

  • 4× 10/100Mbps LAN Ports

  • 1× 10/100Mbps WAN Port

• Network Performance Sensitivity:

  • 5GHz:

    • 11a 54M: -73dBm

    • 11ac VHT20 MCS8: -68dBm

    • 11ac VHT40 MCS9: -64dBm

    • 11ac VHT80 MCS9: -60dBm

  • 2.4GHz:

    • 11g 54M: -76dBm

    • 11n HT20 MCS7: -74dBm

    • 11n HT40 MCS7: -71dBm

• Encryption: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

• Coverage: 1200–1500 Sq. Ft (Open Space)

• Firewall & Security: DoS, SPI Firewall, IP/MAC/Domain Filter, IP & MAC Binding

• Special Features:

  • Guest Network (2.4GHz ×1, 5GHz ×1)

  • Parental Control, Local Management Control, Host List, Rule Management

  • IPv4/IPv6 Support

  • VPN (PPTP, L2TP, IPSec)

  • DDNS (DynDns, Comex, NO-IP)

  • Virtual Server, Port Triggering, UPnP, DMZ

• Management: Local & Remote Management

• Network Modes: Dynamic IP, Static IP, PPPoE, BigPond, L2TP/PPTP (Dual Access)

• OS Support: Windows 98SE–10, macOS, NetWare, UNIX, Linux

• Operating Conditions:

  • Temp: 0℃–40℃ Operating / -40℃–70℃ Storage

  • Humidity: 10%–90% Operating / 5%–90% Storage

• Power Source:

  • External Power Supply 9VDC / 0.85A

  • CE: <20dBm (2.4GHz), <23dBm (5GHz)

  • FCC: <30dBm

• Dimensions: 229.87 × 144.19 × 36.85 mm (9.1 × 5.7 × 1.5 in)

• Certification: CE, FCC, RoHS

• Warranty: 1 Year Manufacturer Warranty

The Dual Band Wi-Fi Router delivers combined speeds of 1200Mbps (867Mbps on 5GHz + 300Mbps on 2.4GHz) for seamless 4K streaming, lag-free gaming, and stable connectivity. Equipped with 4 powerful external antennas, it ensures strong signal coverage up to 1500 sq. ft. With advanced security features like WPA/WPA2 encryption, SPI firewall, and parental controls, your network stays protected. Guest networks allow safe sharing, while VPN and IPv6 support make it future-ready. Ideal for home, office, and smart devices, this router is a reliable choice for high-performance internet.
